Difference between Primary Secondary and Tie beam

Primary Beam:
A horizontal beam connecting columns (simply supported or shear connected.)
Function: It will transfer the load from secondary beam(if present) to the columns.

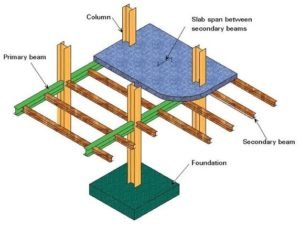

main-qimg-683426bd6cc95144a9b843e957609b79-c
Secondary Beam:
A horizontal beam connecting primary beams (simply supported or shear connected.)
Function: It will transfer the load to the primary beam and not directly connected to the columns.

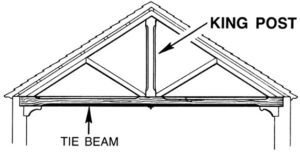

045528f9e-c
Tie Beam:
A horizontal beam connecting two rafters in a roof or roof truss.
Function:
This beam will transfer the rafter’s load to the column of the structure. Usually used in roof truss.

  • Tie beam that ties the foundation at different level may be abbreviated as:
  • Plinth beam at Plinth level
  • Ground beam at Existing ground level

main-qimg-1ff3408e7b1c4c57c1d634edecfe8dca-c
Their function is to tie the columns and foundation at that particular level.
